SRXSIV-4LW Sweeper Vehicle

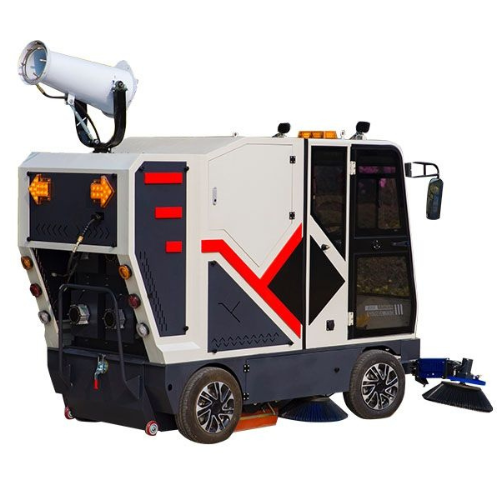

Challenger 3 (SRXSIV-4LW) Sweeper Vehicle

◆Fully enclosed driving-type four-wheel high-power vacuum negative pressure vacuum cleaner, automatic sweeper, high-pressure flushing and high-pressure fog cannon all-in-one machine

◆Driving/rechargeable/combination of vacuuming, sweeping and water sprayin

◆The four-wheel Challenger 3 sweeper is an all-in-one automatic cleaning machine that combines vacuuming, sweeping, and water spraying.

Technical Parameter

1. Product model: SR/XSIV-4LW

2. Shell material: Sheet metal spray coating

3. Number of brushes, fans, and vibration dust: Main brush X1+side brush X4+fan x4+vibration dust x4

4. Walking and turning mode: Steering wheel

5. Drive mode: Pure electric rear wheel differential drive (AC asynchronous motor)

6. Braking method: Hydraulic dual disc brake

7. Power source: 48V 200AH (8 pieces) super maintenance free battery

8. Electric control circuit: National standard integrated waterproof wiring harness

9. Work control mode: Automatic control system, one click start

10. Battery charger: Equipped with intelligent charger

11. Tyre: Increase the size of vacuum tires

12. Cleaning width: Front brush automatic telescopic 1.5M-2.3M

13. Work efficiency: ≤20000m²/h

14. Battery life: 5-7h

15. Climbing ability: 35%

16. Maximum working speed: 8km/h

17. Maximum driving speed: 20km/h

18. Water tank capacity: 400L

19. Garbage bin capacity: ≤260L

20. Edge brush diameter: Front: 600mmX2 Rear: 500X2

21. Main brush specifications: 820mm*400mm

22. Drive power: 4.5kw

23. Homework power: 1000W (main brush)+800W (fan) X4+100W (vibration dust) X4+150W (edge brush) X4+50W (water pump)

24. Turning radius: 2250mm

25. Specification and size: Length X width X height=3500*2300*2600mm

26. High pressure pump power: 1.5kw

27. Maximum working flow rate: 8L/min

28. Maximum work pressure: 13Mpa

29. High pressure pipe length: 10m, imported high-pressure pipe

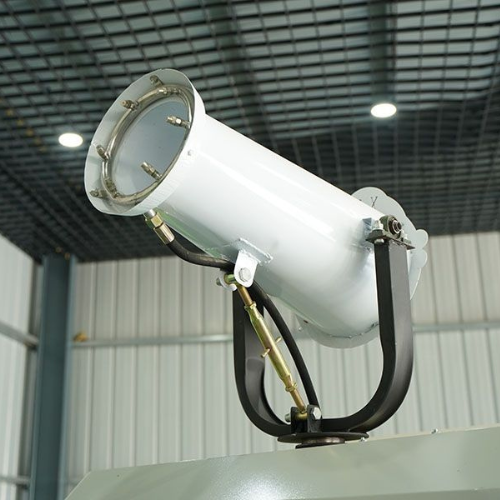

30. The working power of the fog cannon comes from the high-pressure flushing machine pump: Range of 10M

31. Net weight of the machine: 1600Kg

Performance Features:

◆Adopts a powerful dust control system with large filtering area and strong dust collection ability.

◆Integrated and enlarged chassis, the product has stable performance, high work efficiency and long machine life.

◆Built-in large dust filtration system effectively suppresses dust, and the electric dust cleaning vibrator can automatically clean the dust in the filter.

◆Adopt high-pressure atomization spray system to effectively avoid secondary dust.

◆The fully enclosed cab has a beautiful appearance and can avoid the impact of weather, noise, sand and dust on the cleaning work.

◆Humanized product design concept provides users with a safe and comfortable working environment.

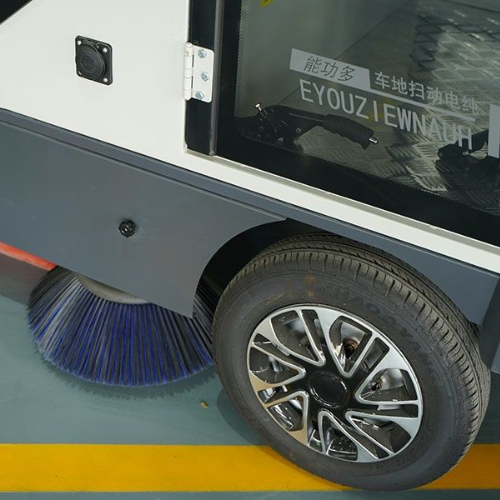

◆Enlarge the vacuum tires to increase the passability of the product.

◆Mature and high-quality electronic control system ensures product reliability and easy operation.

◆Using large-capacity maintenance-free battery as the power source, it is energy-saving and environmentally friendly, and has a long continuous working time.

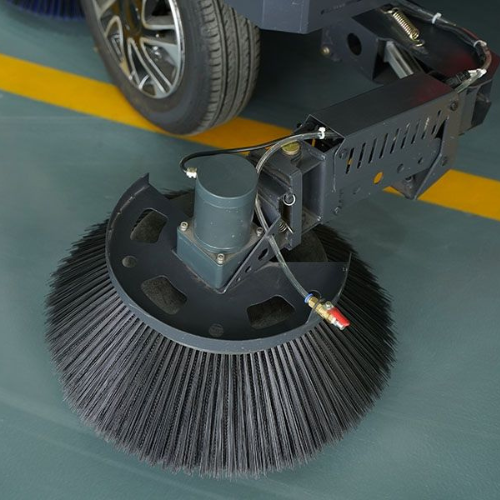

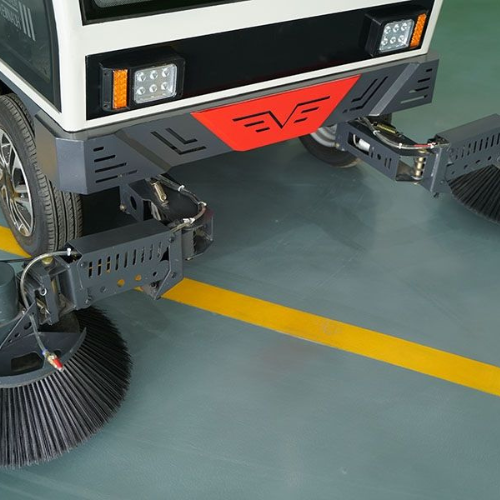

◆Both the side brush and the main brush adopt automatic lifting devices, which is fast and convenient.
